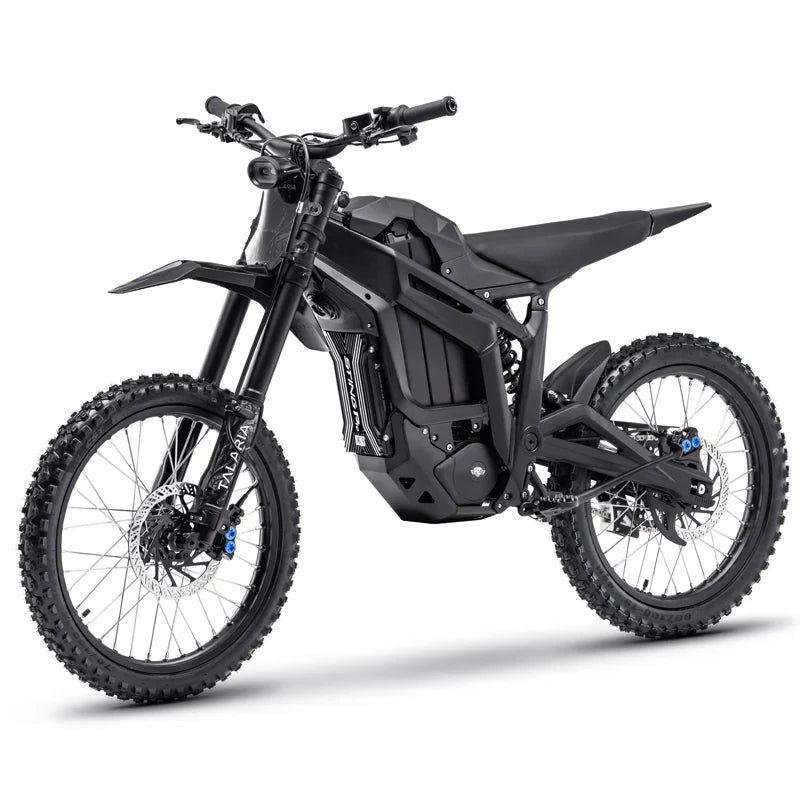

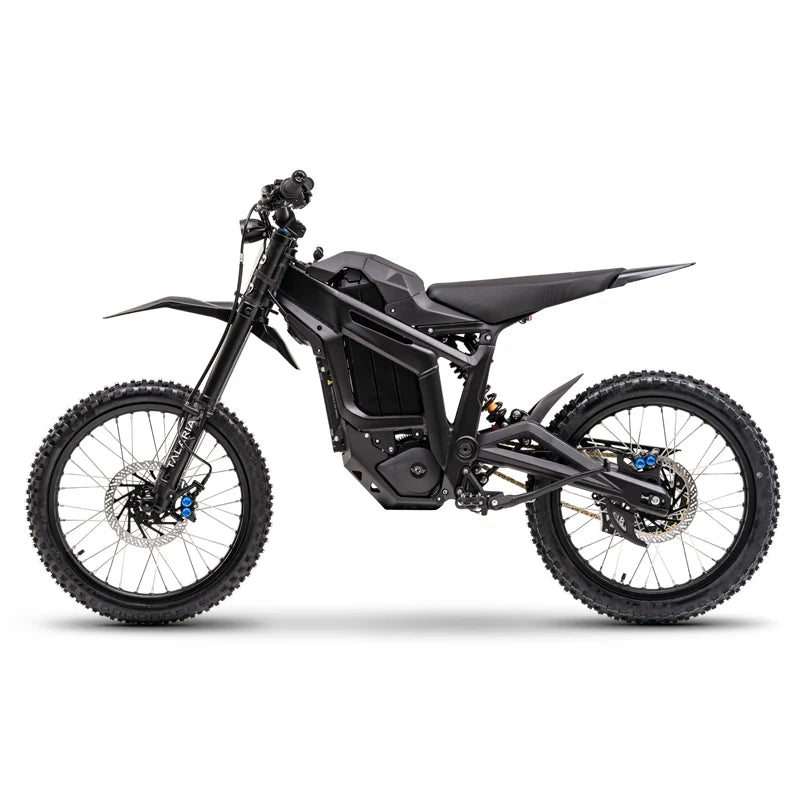

Talaria Sting Pro

The upgraded Sting. The Sting Pro (MX5 Pro) steps up from the Sting R with a larger battery and adjustable air suspension for riders who want more range and finer control.

• Larger battery than the Sting R
• Adjustable air suspension
• Multiple riding modes and a colour display
• Off-road use only
  • 72V 40Ah battery with Samsung 50S cells (2,880 WH)
  • Improved braking power (220x3mm disc brakes, larger calipers & DOT redesigned master cylinders)
  • Adjustable air & double spring suspension tuned for optimal off-road performance (improved over MX4)
  • 3 riding modes including hyper performance mode (unique to the MX5)
  • CNC machined black footpegs
  • Colour TFT Display
  • Straight-pull CNC machined wheel hubs with reinforced spokes
  • Regenerative braking (including regenerative brake lever)
  • Headlight switch
  • Internal reinforced gearbox for quiet, reliable power (no more worn out or snapped belts)

  VEHICLE

  Specification	Details
  Chassis Material	6061 T4 & T6 aluminium alloy
  Process Method	Forged under 6,000 tonnes of pressure
  Surface Method	Anodizing
  Headlight	LED
  Front Fork	Adjustable air + dual spring (220mm travel)
  Rear Shock	Adjustable 85mm travel with linkage
  Wheel Size	1.4×19 in. front / 1.6×19 in. rear
  Tires	FR 70/100-19 / RR 80/100-19 off-road tires
  Max Range	100 km @ 25 km/h (62 miles @ 15 mph)
  Net Weight	76 kg (159 lbs) with battery
  Vehicle Dimensions	1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
  Seat Height	840mm (33.1 in)
  Wheelbase	1,250mm (49.2 in)
  Handlebar Length	760mm (29.9 in)
  Ground Clearance	300mm (11.8 in)
  Max Climbing Angle	45°
  Max Recommended Load	100 kg (220 lbs)
  Brakes	Hydraulic FR/RR improved 4-pistons
  Brake Disc	220mm x 3mm

  POWER

  Specification	Details
  Nominal Voltage	72V (DC)
  Maximum Speed	Factory limited to 32 km/h (20 mph)
  Torque	500N.m (428 48T sprocket)
  Rated Power	5.5 kW (Unrestricted)
  Peak Power	13.4 kW (Unrestricted)
  Power Mode	Eco / Sport / Hyper

  ELECTRONIC

  Specification	Details
  Battery Pack	72V 40AH
  Battery Cells	Samsung 50S
  Display	TFT – Speed, battery level, voltage, odometer
  Regenerative Braking	4-level adjustment + regenerative brake lever

  MOTOR

  Specification	Details
  Motor Type	DC IPM
  Mounting Position	Mid-mounted
  Motor Cooling	Air-cooled

  TRANSMISSION

  Specification	Details
  Primary Transmission	Gearbox
  Drive Transmission	418-108T Chain
  Rear Sprocket	48T
